This optical scanner lends itself for the automated visual inspection of pistons and cylindrical faces. Within a few s the entire surface is scanned with high quality and one can evaluate defects like polished and shiny areas, scratches, sink holes, voids, pits, carbonization, seizure marks, corrosion spots and defective coating.

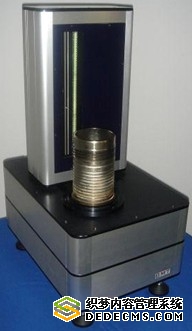

This is accomplished using a photo diode array with an integrated light source to scan the surface in one go. The piston is put on the rotating supporting disk using an adapter plate and the scanner head is adjusted to the proper working distance using the cursor keys.
The scan is started by pressing a key and runs fully automated.
Surface inspection of pistons and cylindrical workpieces
Non-contact automated inspection of piston skirt and running surfaces
Motorized rotation of the workpiece and displacement adjustment of the scanning module
Recording and preview mode
Suitable for all common pistons for cars and commercial vehicles
Data acquisition with standard PC, data export: Excel, ASCII
Data evaluation software for scuffing and carbonisation definition
Detection and memorisation of various kinds of surface features
Clearly defined pictured documentation and filing of the surface structure
Ergonomic operation and scanning of the complete outer piston surface without dead zones
Scanning of all kinds of cylindrical objects
